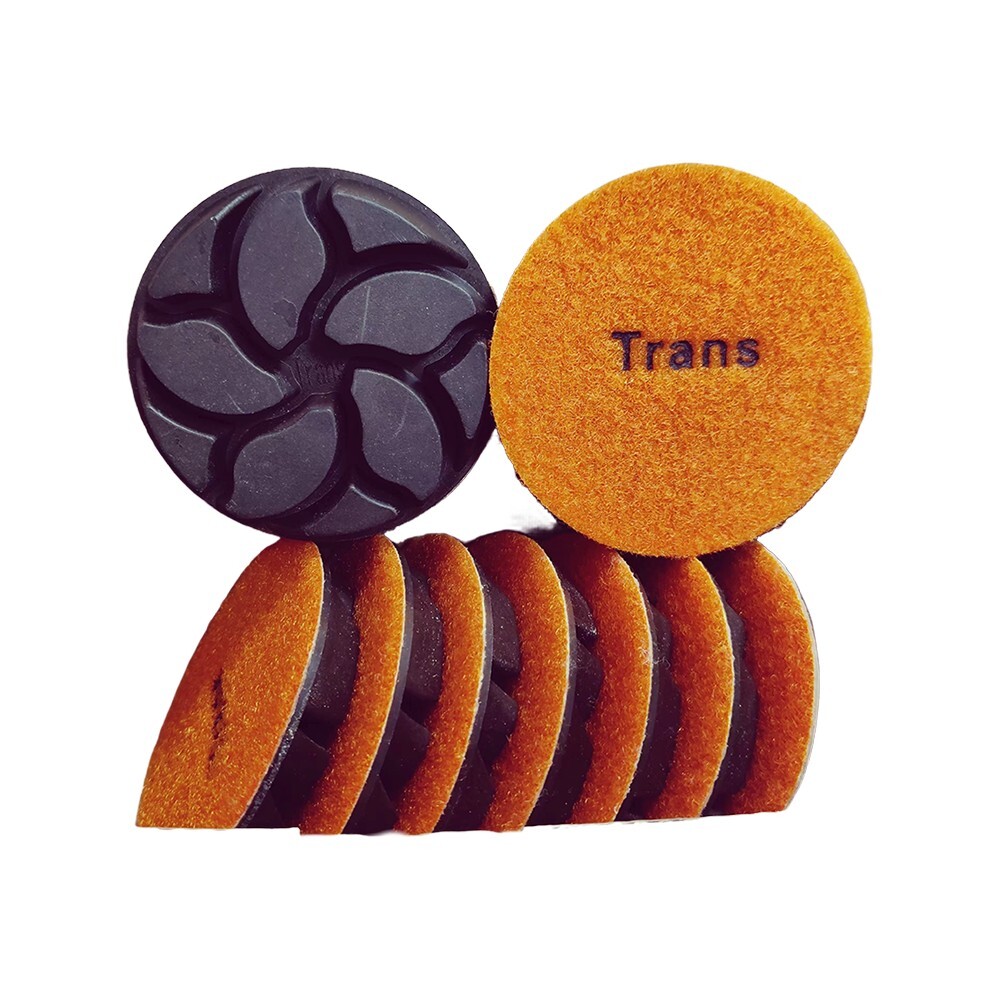

Trans diamond polishing pads
Introduction

Product Features

1. A connection between metal bonds and resin pads of high hardness concrete floors.

2. Used to remove scratches left by metal bonds.

3. Suitable for floors that are wear-resistant and with high hardness aggregates. The content of diamonds are ultra-high.

4. Matched with various light or heavy equipment.



Product Parameter

Parameter

/

Note

Size

3”

4”

Customized

Diameter

80mm

100mm

Thickness

10mm

8mm

Grit

45#

Theoretical scope of application

Trans products are used to remove the scratches left by metal bonds. It can prepare the floor well for next process.

/

Theoretical working area

800㎡-1000㎡

12pcs/set

Theoretical size of connecting metal grinding disc

For ground with strength < C30, it can connect with metal grinding disc #25 or finer;

For ground with strength ≥ C30, it is suitable for connecting with metal grinding disc #50 or finer.

/



Product Advantage

1.The trans discs all adopt micro polishing processing technology, it can reduce the diffuse reflection of the floor after being ground, make all traces visible, avoid reworking, and improve the work efficiency.

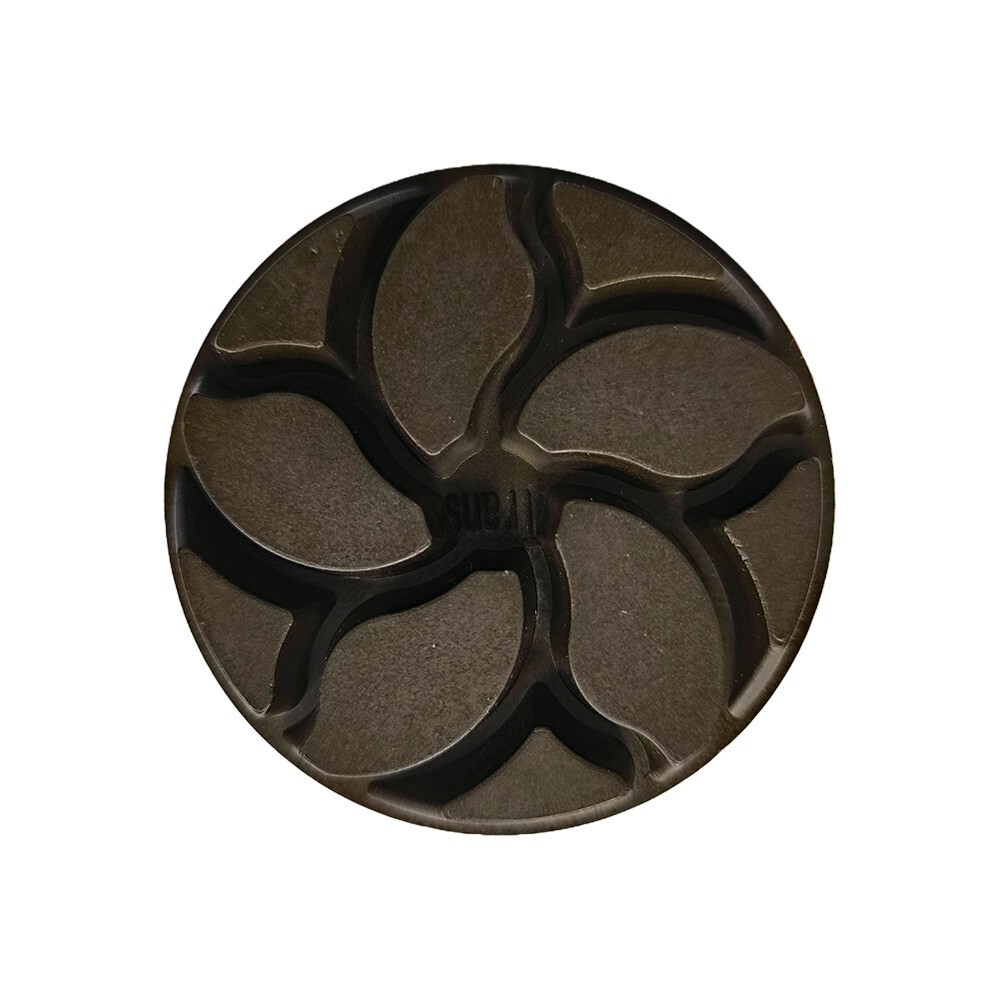

2.The unique design of the floral is beautiful and generous. The curvature of the groove can eliminate grinding waste quickly.

3.The trans discs use high-performance resin as the adhesive. The resin is developed by Hegong Zhengya and having strong mechanical properties and high-temperature resistance. The diamond abrasive used is obtained by multiple crushing using the gas phase crushing method.


FAQ

1. Is the delivery time guaranteed?

We will strictly follow the lead time agreed in the contract, you don't have to worry. If any force majeure, we will timely notify you and give our best solution.



2. Does your company provide sample for us to test first?

Yes, we will provide you the sample for free charge. But we do not pay the cost of freight.
